Regulated gene:yxjC

Direction -
Start position 4001559..4002923
Operon ND
Transcription start site 3978540
COG ID -
Profile yxjC

Binding
factor		 Regulation Location Absolute position Binding seq.(cis-element) Exp. Reference Year
CcpA Negative ND 4003174..4003196 TTTTTGTAAACGCTTTCTAGTTC
 beta-gal Miwa Y et al. 2000
SigE ND -36:+5 4003222..4003263 ATCGGAATAGTTGGCCCA-CGCTTCTCGTACATATGGAAAGGG
 AR, 5'-RACE-PCR Eichenberger, P., et al. 2003

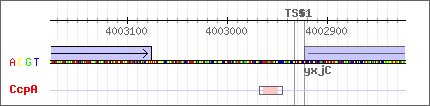

yxjC yxjB Transcription start site CcpA genome sequence base colors
